Fulton Thermic Fluid Heaters are designed and built per ASME Standard or BS Standard
Fulton thermal fluid heaters feature proven design that maintains high fluid velocities and low film temperatures which is immensely efficient. Fulton heaters require minimal floor space due to being skid mounted which includes expansion tank and circulating pump in addition to the heater and compact design. Whether to opt for a steam system or a thermal fluid system is determined by the temperature requirement of the particular process. If the temperature required by the process is below freezing point of water or above approximately 180 C thermal fluid system happens to be a better system while for processes that require temperatures between freezing pint of water and below 180C, steam is the preferable method.
Beneﬁts of Thermal Fluid Systems
Possibility of Reaching High Operating Temperatures (up to 345°C) with Low System Pressure
No Corrosion or Freezing
Simple Circuit Minimum Maintenance
Fulton’s Combination Expansion/ Dearator/Thermal Buffer Tank Provides Pipework Simpliﬁcation, Protection of Thermal Fluid from Oxidation and Continuous Dearation of Fluid
Manufactured to Customer Speciﬁcations

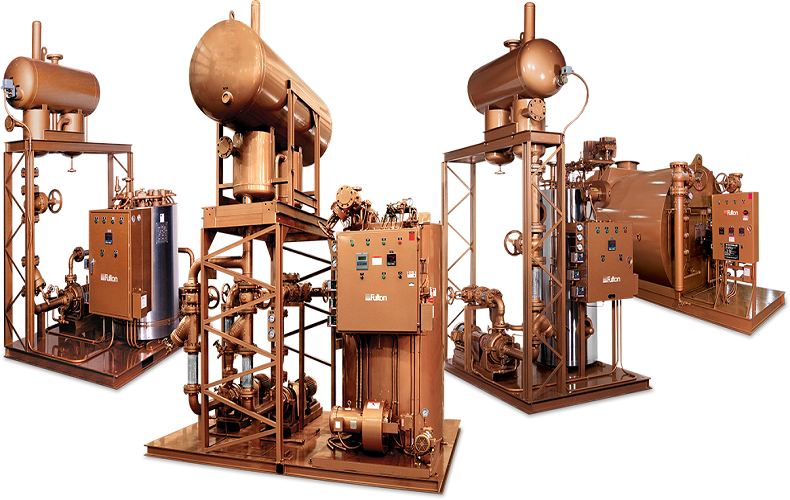

Skid-Mounted Option Available which minimize floor requirement
FT-C Vertical Coil Design
The Fulton FT-C Thermal Fluid Heater offers a compact, fuel ﬁred, 4-pass heater design capable of operating temperatures up to 345°C. The heater is designed to allow for high ﬂuid velocities and low ﬁlm temperatures, which translates into system longevity. It is highly efﬁcient and its ability to be skid-mounted means minimal ﬂoor space is required.

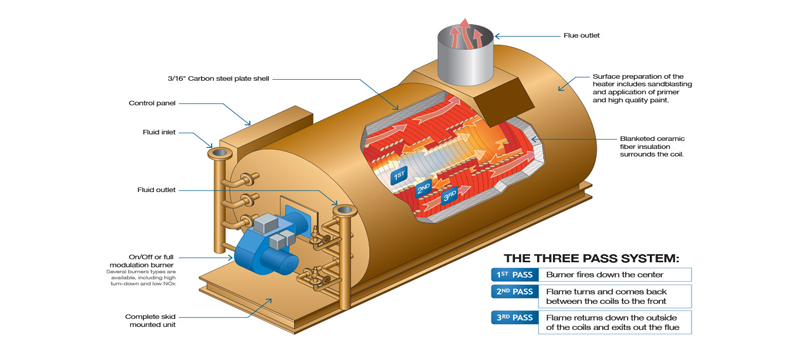

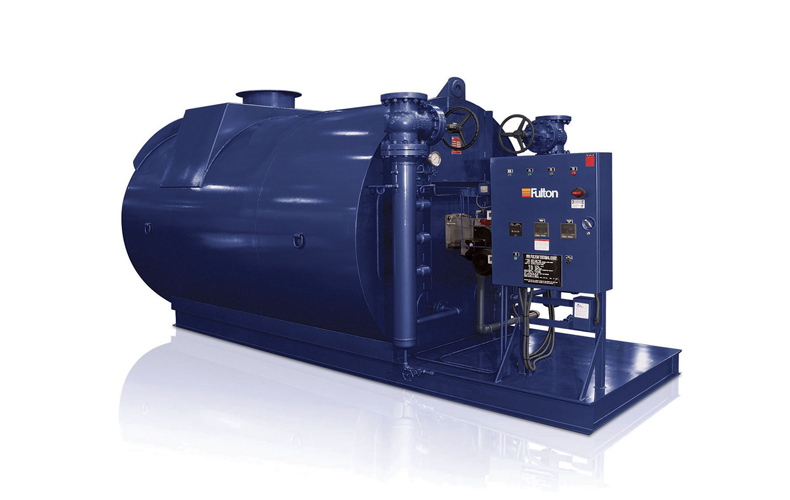

FT-HC Horizontal Coil Design
Opearating Temperatures to 345°C Compact Horizontal 3-Pass Design Modulating Gas, Oil or Dual Fuel Burners Low Emission Gas Burners Alternative Fuel Capabilities Open Protocol Burner Customised Controls Available Skid-Mounted Option Available
Contact our Alliance Experts to get more information about Fulton thermal fluid heaters and see how Alliance fits with your needs. Alliance Engineering as Fulton's authorized agent in Sri Lanka and Maldives supplies, installs and commissions the thermal fluid heaters providing other ancillary equipment and offers after sales support, spare parts and annual servicing.
